Usage cases

You want to perform transition for Sub-Tasks.


How it works

The Post-Function requests to the Auto-Transition Manager to try to perform, for each sub-Tasks, a transition identified by the Action Id and flagged using the Flag Condtion.


Configuring the Feature

To configure the Transition Subtasks Workflow Post-Function, follow these steps :

  1. Add the Transition Subtasks Post-function to any wanted transition, that will be Initiator of the Transition on the Subtasks.

    For more information on adding a Post Function in Workflow, please see JIRA: Adding a Post Function

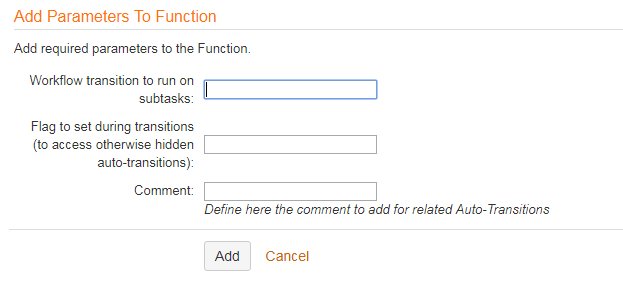

  2. Its configuration allows you to specify ...

    • The Action Id. concerned for the Auto-Transition to perform for the Sub-Task
    • A Flag that may be required if the Auto-Transition to perform is conditioned by a Flag Condition
    • A comment to append when the transition is executed.




  3. When added, the Post-Function should be among the latest defined Post-Functions (its weight is set to 9999).

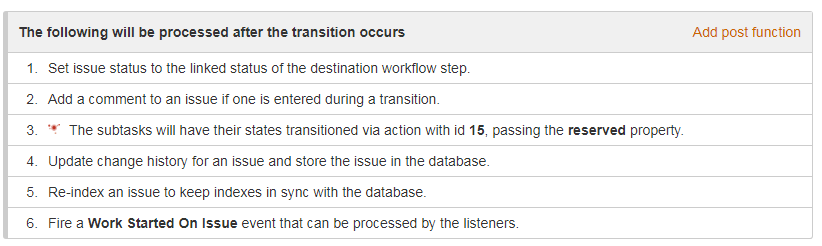

  4. You will end up with a transition looking like:


    And the XML Declaration as follow :

    <post-function >
    	<function type="class">
    	  <arg name="full.module.key">fr.alkaes.minyaa.jira-plugin-minyaa-workflowstransition-subtasks-function</arg>
    	  <arg name="action">15</arg>
    	  <arg name="class.name">fr.alkaes.myaawf.workflow.postfunction.TransitionSubtasksFunction</arg>
    	  <arg name="autoTransitionComment">Executed from Parent Issue</arg>
    	  <arg name="flagproperty">reserved</arg>
    	</function>
    </post-function>
