Usage Cases

This condition allows the transition if the value of the field matches with the specified Regular Expression Pattern (Java 1.5, Java 8)

Add the Condition

Select the RegExp Pattern Condition ...

Alkaes Minyaa Workflows > RegExp Pattern Condition > image2016-8-28 0:32:53.png

Edit and View Parameters

When adding or editing the condition, you will have the following parameters to filled

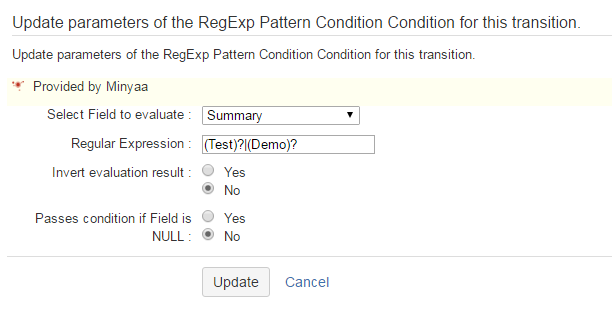

Alkaes Minyaa Workflows > RegExp Pattern Condition > image2016-8-28 0:35:16.png

Name	Key	Domain Value
Field to evaluate	fieldId	Field Id (native Field ID or CustomField If with customfield_123465 format)
Regular Expression	regExpPattern	Regulate Expression Pattern
Invert Evaluation Result	negate	True if the Result of the Pattern evaluation has to be inverted. False is the default .
Passe Condition if Result is NULL	passedIfNull	Assumes the Condition as valid, if the Result is NULL

Ok it is defined ...

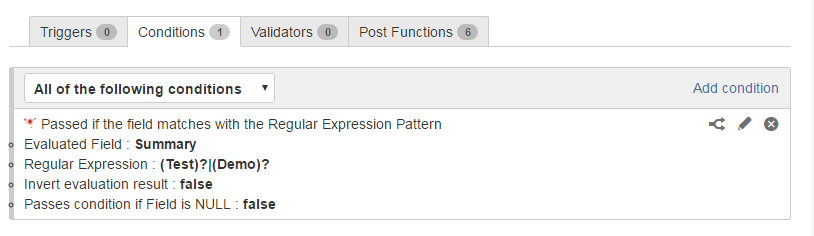

Alkaes Minyaa Workflows > RegExp Pattern Condition > image2016-8-28 0:35:55.png

XML Declaration

The Condition configuration may be done in XML in Workflow descriptor as follow :

<condition type="class">
	<arg name="regExpPattern">(Test)?|(Demo)?</arg>
	<arg name="passedIfNull">false</arg>
	<arg name="negate">false</arg>
	<arg name="customFieldId"></arg>
	<arg name="class.name">fr.alkaes.myaawf.workflow.condition.PatternCondition</arg>
	<arg name="fieldId">summary</arg>
</condition>

Condition based on a Pattern of Regular Expression
