Usage cases

You want to implement some Triage of your incoming JIRA Issues with a move of them in the correct Project/Issue Type :

• You want to allow your users to move quickly an Issue to another Project and/or other Issue Type,
• You want to implement an Auto-Triage for incoming Mail, by using Auto-Transition and Issue Move.

How it works

By using this Move Issue Post-Function in your workflow, you will be able to move it to another Project and/or other Issue Type,

Image Added Image Added

Configuring the Feature

To use this Move Issue Post-Function, please follow these steps :

• Create you your suspensive Step,
• Append incoming transitions (One Global Transition or few Step Transitions, depending your needs)
• Append a Recursive Transition
• It will give by example such below Steps

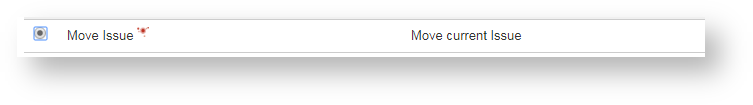

• You will have just to add  the Move Issue Post-Function to any wanted transition
  For more information on adding a Post Function in Workflow, please see JIRA: Adding a Post Function

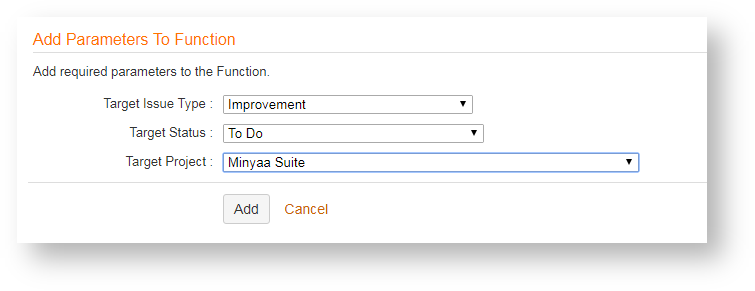

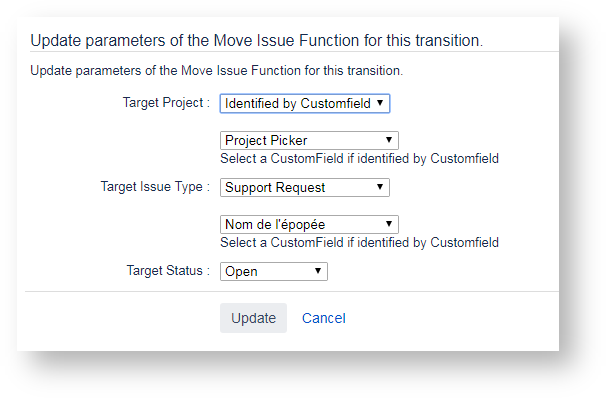

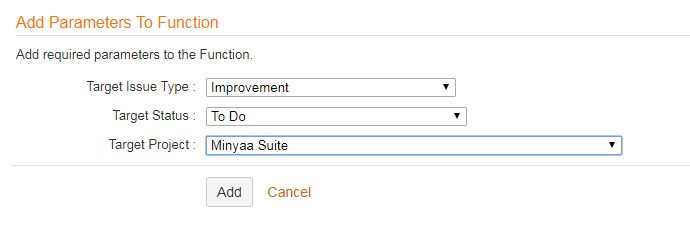

• Its configuration allows you to specify ...


  • The Project where you want move the issue,
    • in the same Project (it means that you will specify another target Issue Type),
    • Explicitly identified,
    • or implicitly identified by a Customfield
  • The Issue Type to use for the target Issue,

    • in the same Issue Type (it means that you specify another target Project),
    • Explicitly identified among any Issue Type,
    • or implicitly identified by a Customfield
  • The Status in which the Issue has to be set,

• For all these parameters, you can specify that it has to be moved in the same Project, Issue Type or Status

  .
  Image Removed

  .
  Image Added

  Warning
  title Before continuing ...
  Note that no control is possible at this stage. The selected Issue Type has to be relevant for the selected Project !

• When added, the Post-Function should be among the latest defined Post-Functions (its weight is set to 1000).

• You will end up with a transition looking like:
  Image RemovedImage Added

  And the XML Declaration as follow :

  Code Block
  language xml
  <post-function > <function type="class"> <arg name="targetIssueTypeCustomfieldId">customfield_10104</arg> <arg name="targetProjectId">10240<>-2</arg> <arg name="full.module.key">fr.alkaes.minyaa.jira-plugin-minyaa-workflowsmoveIssueFunction</arg> <arg name="targetIssueTypeId">24<>10100</arg> <arg name="targetStatusId">10215<>1</arg> <arg name="class.name">fr.alkaes.myaawf.workflow.postfunction.MoveIssueFunction</arg> <arg name="targetProjectCustomfieldId">customfield_10300</arg> </function> </post-function>

• When the Post-Function will be executed, it will check for Transition History, and will identify the previous Step (different from the current), and then it will create a new Step occurrence in the Workflow, like if there was some outgoing transition to this previous Step.
