Usage Cases
This condition allows the transition if
Flag Condition
Overview
Transition is allowed, ifa Flag is passed in arguments.
Add the Condition

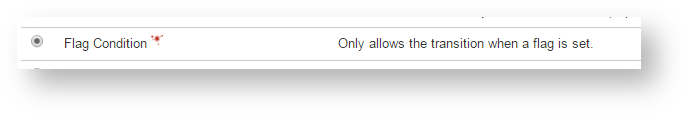

Select the Flag Condition ...
This function has to be used only in combination with Post-Functions or any other Third Part Initiator able to pass an argument in the Transition Context.
Minyaa provides following post-functions :
Edit and View Parameters

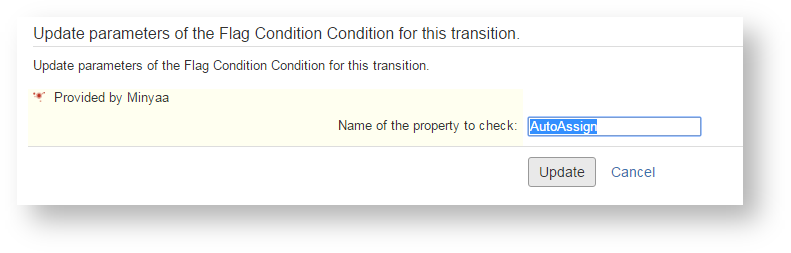

Specify the expected flag that has to be passed in arguments,
Ok OK, it is defined ...

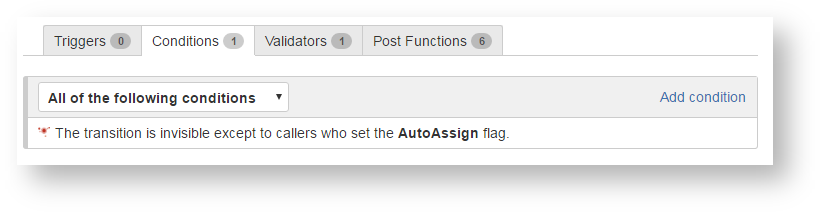

Now, the condition is valid, only if the flag AutoAssign is present in arguments ... It can have been passed by one of Minyaa Post-Function, but also in a dedicated development as Initiator (JIRA Service, Listener, ...)
XML Declaration
The Condition configuration may be done in XML in Workflow descriptor as follow :
1.| Code Block | ||
|---|---|---|
| ||
<condition |
<condition type="class"> |
2.<arg <arg name="flag">AuoAssign</arg> <arg name="class.name" |
>fr.alkaes. |
myaawf.workflow.condition.FlagCondition</ |
arg>3.<arg name="flag">AutoAssign</arg>4.</condition>Here the condition is valid, if the flag AutoAssign is present in arguments ...
arg>
</condition> |
| Excerpt | ||
|---|---|---|
| ||
Condition to block a Transition depending on Status of Linked Issueallow only a Flag is passed.
|
